Development of object recognition and human interactive intelligent radar sensor platform for smart environment based on defense industry radar & system research, development and manufacturing experience

electromagnetic flowmeter that meets ISO-748 requirements

SPEC

• Detection Distance : 1 ~ 50 [m]
• Measurement Range Velocity : 0.03 ~ 30 [㎧]
• Resolution : 0.001 [㎧]
• Beam Angle : 50º/30º [Azimuth/Elevation]
• Velocity Data Acquisition Point : 1~63 [Azimuth] / 1~5 [Elevation]
• Waterproof Grade : IP67
• Report Protocol : TCP-IP / UDP / ModBus RTU
• Power : 12 ~ 36 [VDC]
• Consumption current : < 1000 [㎃]
• Operating Temperature : -40°C ~ +85°C

Patent: Electromagnetic surface velocimeter for multi-point flow velocity measurement and flow velocity measurement method using the same

▶ KRS Corporation, equipped with world-leading technology, emerges as a frontrunner in the industrial and safety radar sectors

electromagnetic level meter

SPEC

• Operating Voltage : 12 ~ 36 [V]
• Measuring range : 30 [m]
• Accuracy : ± 2 [mm]
• Resolution : 1 [mm]
• Protecting rating : IP67
• Communication protocol : Modbus / BLE 5.0
• Process temperature : -40°C ~ +85°C

electromagnetic flow meter

SPEC

• Operating voltage : 12 [V]
• Flow rate measurement range : 0.03 ~ 30 [m/s]
• Flow velocity maximum measurement distance : 1 ~ 50 [m]
• Flow measurement resolution : 0.001 [m/s]
• Flow accuracy : ±2 [%]
• water level maximum measuring distance : 35 [m]
• Water level measurement resolution : 1 [mm]
• Water level measurement accuracy : ±2 [mm]
• Flow measurement accuracy : ≤ 2 [%]
• Communication protocol : ModBus, UDP
• Waterproof Grade : IP67
• Process temperature : -35°C ~ +75°C

Patent: Multi-band radar sensor and AI-based flow measurement system

RFSoC-based digital receiving board

SPEC

• Core : Xilinx Zynq UltraScale Gen3(XCZU47DR / XCZU48DR)
• Interface :
     - VPX 기반 PCI Express(Gen 1, 2, 3)
     - 10G Aurora- Ethernet
     - RS232 / RS422
     - SPI
• Memory : NVMe / Flash / SD Card / DDR4
• S/W : Peta Linux

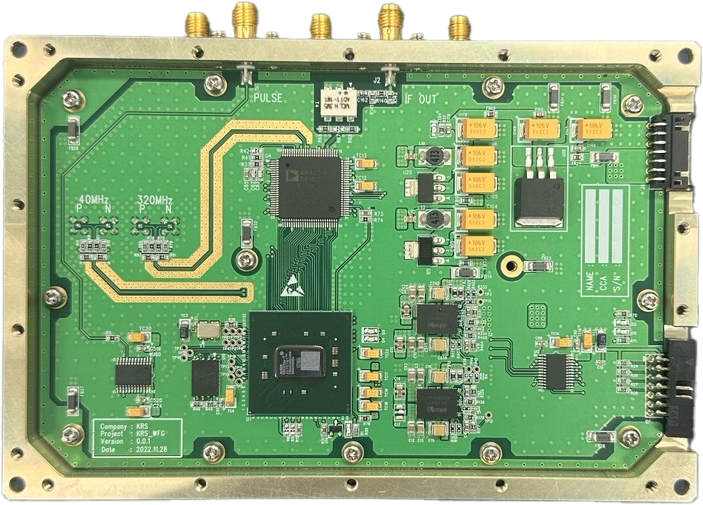

4-channel downconversion module for X-Band radar

SPEC

· Operating Frequency
- Input : X-Band
- Output : P-Band
· Channel : 4[개]
· Dimension : 120*100*27 [mm]
· Gain: 30[dB] Or more
· GainAdjustment : 0~30 [dB]
· Noise Figure : 7 [dB] Or less
· Output P1dB : +12 [dBm] Or more
· Power: +12[VDC]
· Consuming Power : 15 [W] Or less
· Control : I²C / SPI / LVTTL
· Function

ㅤ- Low noise amplification / Frequency downconversion
ㅤ- Local signal self-generated (REF. CLKinput)
ㅤ- Route inspection and transmission of inspection results (BIT)
ㅤ- Gain adjustment
